DEEP UV SMD LEDs - 265 nm

Deep Ultra Violet Light Emitting Device at typically 265 nm.

Applications: Forensic Analysis, Disinfection, Optical Sensing, Imaging Applications.

pdf

DUV265-SD series

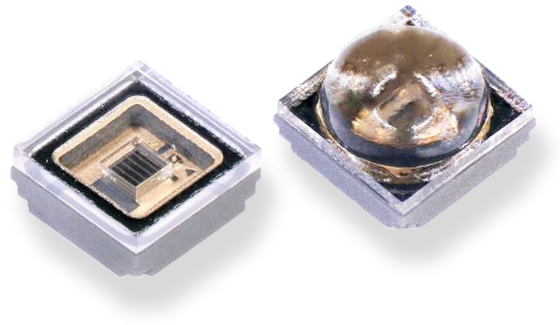

Single chip AlGaN based 265nm LED in 3535 SMD package with Quartz glass window, and

integrated ESD protection device. Available with 100mA and 350mA nominal current.

Part No. WL WL tol. FWHM Po Io angle Package Lens Note Data sheet
DUV265-SD351 265 nm � 5 nm 11 nm 5 mW 100 mA 120 � 3535 SMD flat window integrated ESD protection pdf
DUV265-SD353E 265 nm � 5 nm 11 nm 30 mW 350 mA 120 � 3535 SMD quartz window ESD protection, high efficiency pdf
DUV265-SD353EL 265 nm � 5 nm 11 nm 27 mW 350 mA 65 � 3535 SMD quartz lens ESD protection, high efficiency pdf
DUV265-SD353EN 265 nm � 5 nm 11 nm 25 mW 350 mA 35 � 3535 SMD quartz lens ESD protection, high efficiency pdf
MOQ: 1 piece
