CW405 Series
- Automatic Power Control (APC)
- 3-5 VDC supply voltage
- IEC 60130-10 Type A coaxial connector
- Fix collimated acryl lens
| Part No. | Wavelength | Power | Supply Vol. | Dimensions | Note | Data sheet |
| CW405-01 | 405 nm | <1 mW | 3-5 VDC | Ø 12 x 20(41) mm |  |
|
| CW405-05 | 405 nm | <5 mW | 3-5 VDC | Ø 12 x 20(41) mm | |
CW405 USB-C series
- Automatic Power Control (APC)
- 5 VDC supply voltage
- USB-C connector
- Fix collimated acryl lens
| Part No. | Wavelength | Power | Supply Vol. | Dimensions | Note | Data sheet |
| CW405-01C | 405 nm | <1 mW | 5 VDC | Ø12 x 21(44) mm | NEW | |
| CW405-05C | 405 nm | <5 mW | 5 VDC | Ø12 x 21(44) mm | NEW | |

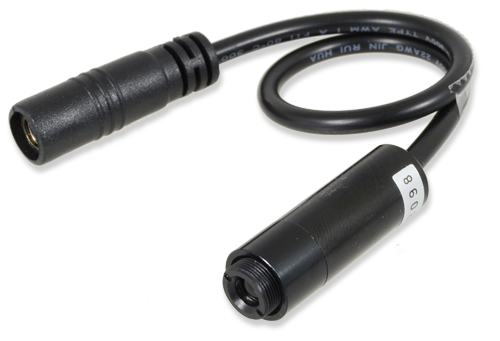

CW405 Focusable Series
- Automatic Power Control (APC)
- 3-5 VDC supply voltage
- IEC 60130-10 Type A coaxial connector
- Focusable acryl lens
| Part No. | Wavelength | Power | Supply Vol. | Dimensions | Note | Data sheet |
| CW405-01F | 405 nm | <1 mW | 3-5 VDC | Ø 12 x 37 mm | NEW | |
| CW405-05F | 405 nm | <5 mW | 3-5 VDC | Ø 12 x 37 mm | NEW | |
RLD Series
Violet laser diode module
Glass lens, focus adjustable
CW, APC (automatic power control)
| Part No. | Wavelength | Power | Supply Vol. | Dimensions | Note | Data sheet |
| RLDD405-1-3 | 405 nm | 1 mW | 3 VDC | Ø14 x 45 mm | 0.5 mrad, <70 mA | |
| RLDE405-12-6 | 405 nm | 12 mW | 6 VDC | Ø22 x 65 mm | 0.6 mrad, <60 mA | |
RLDE405M Series, with modulation
Violet laser diode module
CW operation or TTL modulation up to 20 kHz
Glass lens, focus adjustable
APC (automatic power control)
Operating temperature: 0 .. +60°C
| Part No. | Wavelength | Power | Supply Vol. | Dimensions | Note | Data sheet |
| RLDE405M-20-5 | 405 nm | <20 mW | 5 VDC | Ø16 x 50 mm | 0.6 mrad, <120 mA, TTL <20 kHz | |
| RLDE405M-50-5 | 405 nm | <50 mW | 5 VDC | Ø22 x 65 mm | 0.6 mrad, <160 mA, TTL <20 kHz | |
| RLDE405M-100-5 | 405 nm | <100 mW | 5 VDC | Ø22 x 65 mm | 0.6 mrad, <200 mA, TTL <20 kHz | |
MOQ: 1 piece
