LINE LASER MODULES - 520 nm

RLCW520 Series - focusable line

Direct emitting green line laser module
90° line, aspheric optical glass lens
Focus adjustable
CW, APC (automatic power control)
Operating temperature: -10 .. +60°C
on request: 10°, 45°, 60° and 110°

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLCW520FL-5-5	520 nm	5 mW	5 VDC	Ø16 x 65 mm	focus adjustable

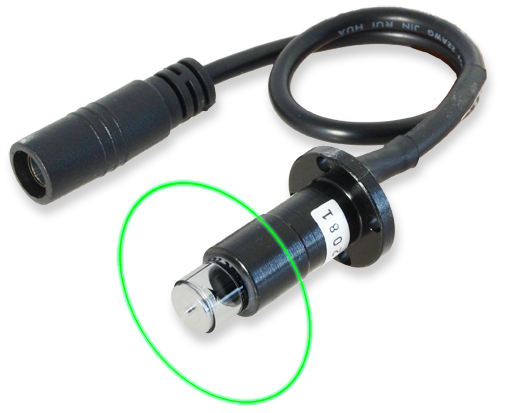

360° Line Laser Modules

Aluminium cone mirror for full 360° line generation
Automatic Power Control (APC)
3-5 VDC supply voltage
IEC 60130-10 Type A coaxial connector

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW360-5210	520 nm	10 mW	3-5 VDC	Ø12(20) x 37 mm	Laser Class 2

MOQ: 1 piece
