LINE LASER MODULES - 635 nm

RLCW635 Series - focusable line

Red line laser module
90° line, aspheric optical glass lens
Focus adjustable
CW, APC (automatic power control)
Operating temperature: -10 .. +60°C
on request: 10°, 45°, 60° and 110°

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLCW635FL-5-3	635 nm	5 mW	3 VDC	Ø16 x 65 mm	focus adjustable	request

RLL series

Line laser modules high power, red laser line uses cylindrical glass lens, supply voltage 3 VDC
on request: 10°, 45°, 60° and 110°

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
RLLI635-2.5-3	635 nm	2.5 mW	3 VDC	Ø8 x 25.5 mm	100°, with connector
RLLI635-2.5-3-LI	635 nm	2.5 mW	3 VDC	Ø8 x 25.5 mm	100°, wires only
RLLH635-4-3-LI	635 nm	4 mW	3 VDC	Ø12 x 32 mm	100°, wires only
RLLH635-4-5-LI	635 nm	4 mW	5 VDC	Ø12 x 32 mm	100°, wires only	request

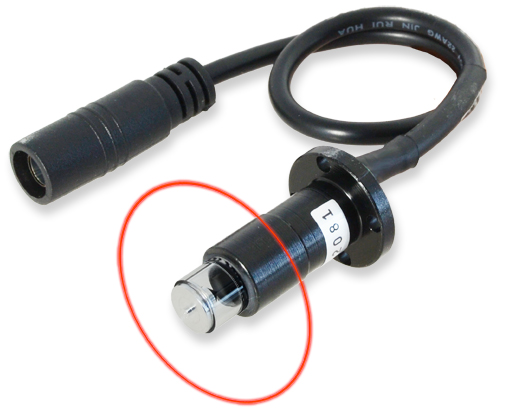

360° Line Laser Modules

Aluminium cone mirror for full 360° line generation
Automatic Power Control (APC)
3-5 VDC supply voltage
IEC 60130-10 Type A coaxial connector

Part No.	Wavelength	Power	Supply Vol.	Dimensions	Note	Data sheet
CW360-6310	635 nm	10 mW	3-5 VDC	Ø12(20) x 37 mm	Laser Class 2
TN360-6450	638 nm	50 mW	3-5 VDC	Ø13(20) x 35 mm		request

MOQ: 1 piece
