MOUNTS FOR LEDS

PCB boards for LEDs with SMD 3020 package

Aluminium base, white solder mask surface finish
Pb-free, RoHS complaint

Part No.	Material	Size	Note	Data sheet
PCB-SMD3020	Al based	15.0x15.0x1.1 mm	white solder mask surface finish	request

PCB boards for LEDs with emitter package

Aluminium base, HTCD thermally conductive dielectric, copper circuit foil: 35 µm, white solder mask surface finish
Pb-free, RoHS complaint

Part No.	Material	Size	Note	Data sheet
PCB-STAR	Cu + Au plate	19 x 19.9 x 1.5 mm	white solder mask surface finish	request

PCB boards for GD35 LEDs

Printed aluminium circuit boards, designed for easily soldering and mounting of GD35 series LEDs or other LEDs with identical 3535SMD footprint. Available from 8-20 mm in diameter. Ideally suited for prototyping and evaluation.

Part No.	Material	Size	Note
GD35-PCB-8	Al plate	8 x 1.5 mm	white solder mask surface finish
GD35-PCB-10	Al plate	10 x 1.5 mm	white solder mask surface finish
GD35-PCB-14	Al plate	14 x 1.5 mm	white solder mask surface finish
GD35-PCB-20	Al plate	20 x 1.5 mm	(hexagonal) white solder mask surface finish

PCB boards for SMB1N Series

Get your SMB1N LEDs mounted easily with those PCB boards!

Part No.	Material	Size	Note	Data sheet
SMB1N-PCB	Cu + Au plate	17 x 23 mm	PCB for SMB1N series

PCB board for DUV-SD35x Series

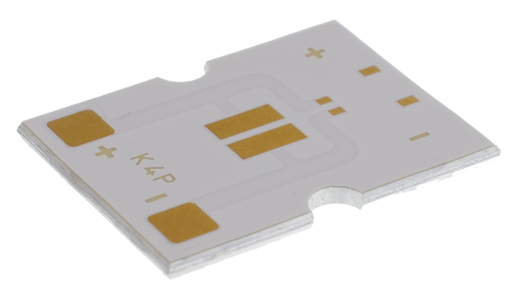

Designed for quick and easy mounting of DUV-SD353Ex LEDs

Part No.	Material	Size	Note	Data sheet
SD35-PCB	Cu + Au plate	15 x 20 mm	PCB for DUV-SD35 series

Heat Sinks for TO-66 Package

Part No.	Material	Size	Weight	Note	Data sheet
Heat Sink 47x10-5	black aluminium	Ø47.5 x 10 mm	27 g		/
Heat Sink 47x20	black aluminium	Ø47.5 x 20 mm	54 g		/

Thermal Grease

Recommended for high power LEDs

Part No.	Material	Weight	Note	Data sheet
Thermal Grease ST-700		1 g	10 % AgOx, TC: > 7.5 W/mK	request

MOQ: 1 piece
